magsafe 3 magnetic chargers

The Engineering Behind MagSafe 3 Magnetic Chargers: How Pogo Pin Design Achieves Low Contact Resistance

09Aug
by pogopin
0

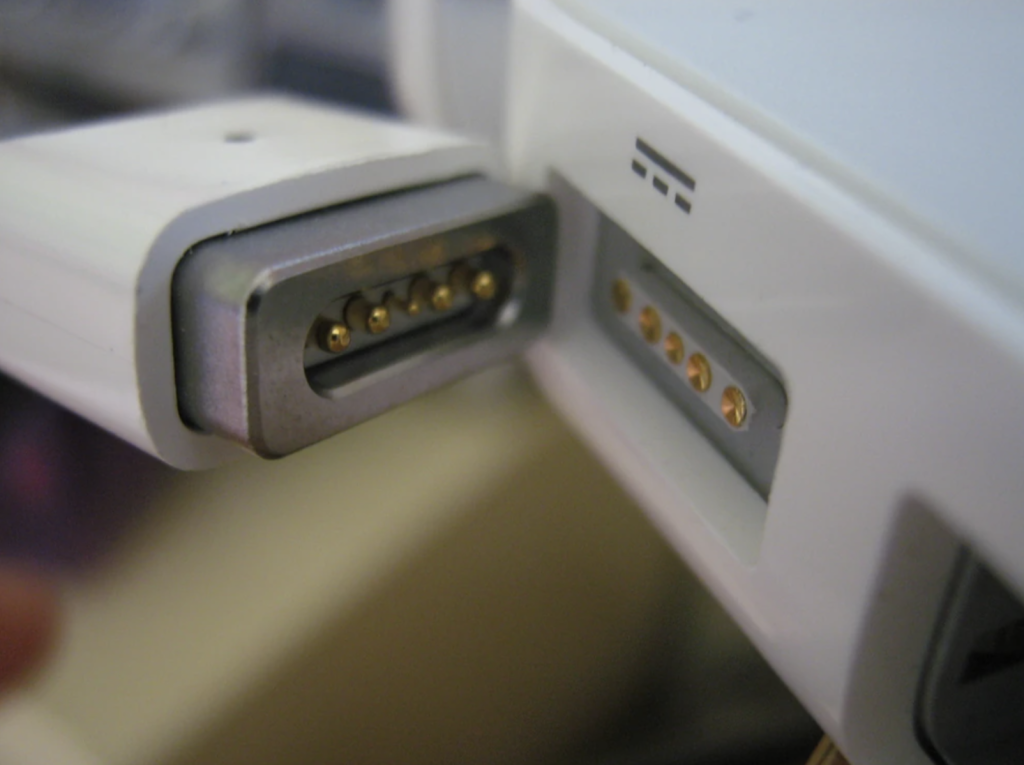

magsafe 3 magnetic chargers

Ever wondered how your MagSafe 3 magnetic charger works so flawlessly every time? That satisfying magnetic snap is just the beginning. The real magic lies in the engineering designed Pogo pin charger mechanism to maintain an incredibly low contact resistance, ensuring fast and reliable charging.

So, how do magnetic chargers work so reliably? It comes down to maintaining low contact resistance through smart pogo pin design.

1. Optimal Spring Force: The First Line of Defense

At the heart of every pogo pin is a precision-engineered internal spring. This component isn’t just for making the pin bounce; it’s critical for creating a stable electrical connection.

  • Breaking Through Barriers: The constant force from the spring is strong enough to push through microscopic layers of dust or oxidation on the contact surfaces. This ensures a pure, direct metal-to-metal connection, which is essential for low resistance.

  • Maintaining Solid Contact: This spring force also acts as a shock absorber, keeping the pins firmly pressed against the device’s contact pads even during minor bumps or vibrations. This prevents intermittent connections and power fluctuations

2. Superior Materials & Plating: The Foundation of Conductivity

A connection is only as good as the materials it’s made from. Pogo pin chargers use a strategic combination of materials to maximize performance and durability.

  • Base Materials: The core components—the plunger and barrel—are typically machined from brass or copper alloys, chosen for their excellent electrical conductivity.

  • Gold Plating: The contacts are then plated with gold over a nickel underplate. Why gold? It’s not just for looks. Gold is an exceptional conductor that is highly resistant to corrosion and oxidation, the two biggest enemies of a low-resistance connection.

3. Perfect Magnetic Alignment

The “Mag” in MagSafe 3 is no gimmick. The powerful magnets inside the connector are precisely calibrated to guide the charger into the exact correct position every single time. This perfect alignment is crucial. It ensures that the pogo pins land squarely on their intended pads, achieving the maximum contact area and the lowest possible resistance for the most efficient charging.

4. The Importance of Cleanliness

While a well-designed magnetic connector is robust, keeping the contacts clean is the final piece of the puzzle. The spring-loaded nature of the pins can help clear away minor debris, but for optimal, long-term performance, it’s always a good practice to ensure both the charger and the device’s port are free of dust and grime.



Conclusion:

For pogo pin chargers to maintain a low contact resistance which also means a stable high speed electrical connecton, you would need the following :

  1. Suitable spring force (100-150gf would be recommended in this case)
  2. Superior material & plating (Copper Alloy and higher gold plating level)
  3. Perfect magnetic alignment
  4. Cleanliness



Ready to Build Your Own Custom Magnetic Charger?

Your device deserves a charging solution that is just as innovative as the product itself. If you need a reliable, custom-designed magnetic pogo pin charger, our engineering team is ready to help.

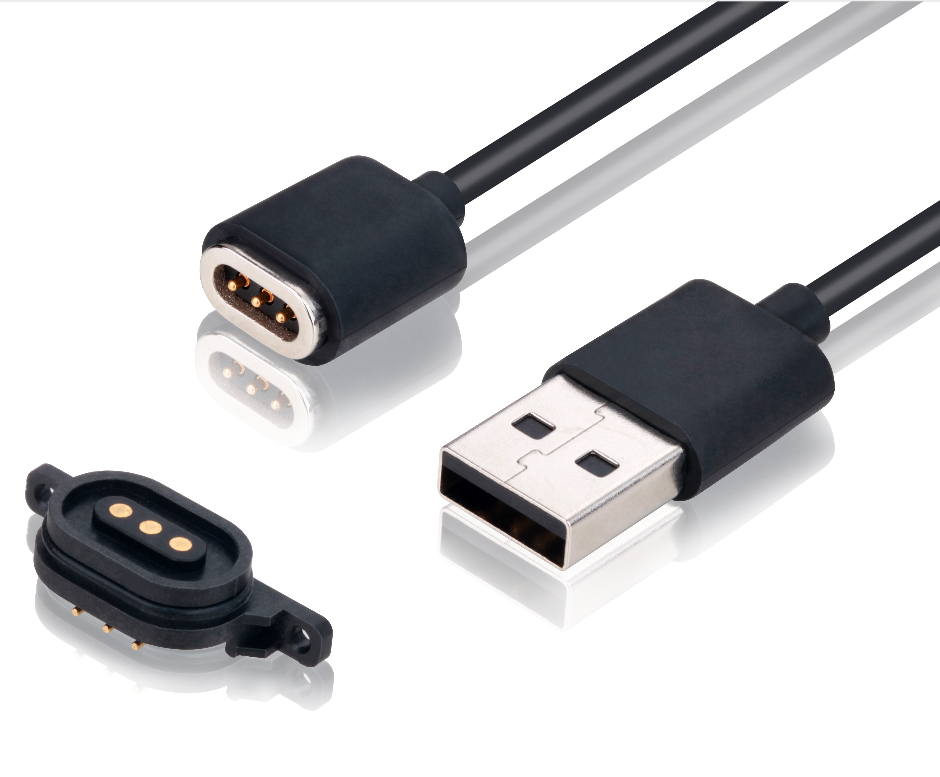

magnetic charger example



Btw Thanks Ken Shirriff’s blog for sharing “Teardown and exploration of Apple’s Magsafe connector”

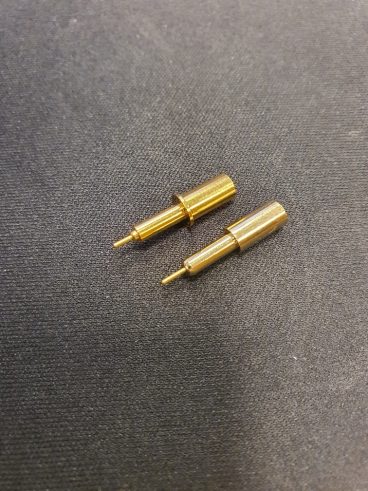

ZHENGHE POGO PIN VS., OTHERS

How to Choose Gold Plating Level for Pogo Pin Connectors: Guide 101

10Mar
by pogopin
0

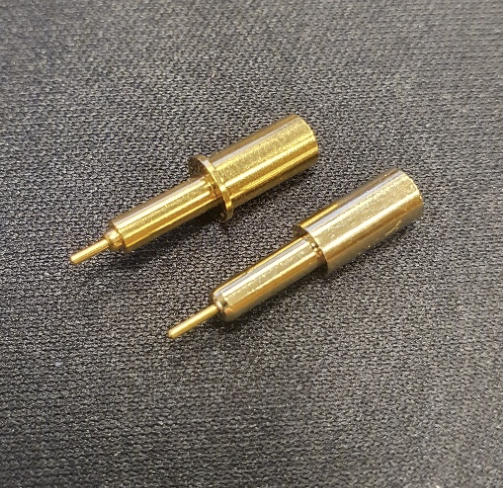

illustrating different gold plating thickness

Why Gold Plating is Crucial for Pogo Pin Connector?

Some of the confusing issues for customers might be “What gold plating level should I choose for my application? Why do I need gold plating for the POGO-PIN connector?” In this article, we can have the answer for that.

  • Why Do We Need Gold Plating For POGO-PIN?

  • The benefit of gold plating

1. Low contact resistance. Compared to other metal platings (eg. Pt, Pd, Silver), gold plating generally maintains lower and more stable contact resistance.

2. Corrosion resistance. Gold, as a Noble Metal Character,  is one of the least reactive chemical elements, being the second lowest in the reactivity series, with only platinum ranked as less reactive.

3. Mechanical Durability. For conductive contacts, a gold alloy can provide the necessary durability and corrosion resistance.



What Gold Plating Thickness Should I Choose?

To comprehend this question, let’s talk about the units of gold plating, and what are some most used gold plating level in electronics.

Understanding Gold Plating Units

Microns (µ): This is the most common unit in the metric system.

Microinches (µin): This is the imperial unit, often used in the United States.



Conversion:

  •

Common Gold Plating Thickness in Electronics

Low Thickness
(1–5 µinch):

Medium Thickness (5-50 µinch):

High Thickness (50+ µinch):

  • Applications: Consumer electronics (e.g., wearables, smartphones) in dry environments.

Salt Spray Test: 24–48 hours

  • Cost: Budget-friendly but limited durability.

  • Applications: Industrial equipment, automotive systems exposed to humidity.

  •
  •

  • Salt Spray Test:            96 hours+

Applications: Aerospace, marine,  extreme environments, and high-end customers.

  •
  • Salt Spray Test:
  • 200 hours+









ZHENGHE
POGOPIN
(ABOVE)





OTHER SUPPLIER'S
POGOPIN
(BELOW)

ZHENGHE’S products are built to last. You truly get what you paid for.

ZHENGHE POGO PIN VS., OTHERS

2. How to Choose the Right Gold Plating?

  • Application Environment:

  1. Dry/Low-Corrosion (e.g., indoor IoT devices): 1–5 µinch (24–48 hours).

  2. High Humidity/Corrosion (e.g., automotive, industrial): 15–30 µinch (96–200+ hours).

  •

  • Electrical Requirements:

    1. High-frequency signals (e.g., 5G, RF connectors) require thicker gold plating (15+ µinch) to minimize resistance and signal loss.

  • Budget Constraints:

    1. Thicker plating increases material costs. Balance performance needs with budget (e.g., use 5 µinch for cost-sensitive projects).

  • Compliance Standards:

    1. Industries like medical or defense may mandate minimum thickness (e.g., 15 µinch for MIL-STD-454).

humidity environment
dry environment

Custom Your POGO PIN Now

by emailing : CLAIRE@POGOPIN.NET

Our sales representative will reply to you as soon as possible.

Order Custom & Standard Pogo Pin Samples | ZHENGHE Solutions

10Mar
by pogopin
0

Welcome to ZHENGHE

     “Your Trusted Partner for Custom Pogo Pin Design &Prototyping”

Close-up of a variety of pogo pin samples available from ZHENGHE

“Whether you need standard samples or a custom po go pin design, we offer flexible options to match your prototyping needs. Explore our sample policies below and contact Claire for dedicated support.”

ZHENGHE ‘s Sample Policy

  • In-Stock Products:  “Standard samples are free of charge with delivery within 3-5 business days. EXW“

  •

  • Custom/Non-Stock Products:  “A one-time setup fee applies to cover production costs. Submit your requirements for a tailored quote.

  •
  •

ZHENGHE ‘s Custom Design Service

  • “Have a unique design? Send us your drawings or specifications, and our engineers will provide DFM feedback and a prototype plan within 24 hours.”
  •
      •

How to Order

  1. Step 1: Click “Quote Now” buttom, and fill out the sample request form

     or email Claire@pogopin.net with:

                  Product ZHENGHE P/N code (if applicable)

    •               Sample Quantity & specifications
    •               Gold plating level (check out the link if you are not sure about what                                                 gold plating thickness you need)
    •              Attach 3D design files (optional)
  2. Step 2: Receive a quote within 24 hours.
  3. Step 3: Confirm & place a sample order.
  4. Step 4: Finish & track your order.



Why Choose Us?

  • “99.9% of clients return for bulk orders after sampling                                                 → Fast response | Expert support | Transparent pricing



FAQ

  • Q: Can I modify the design after sampling?
    A: Yes! We offer free design adjustments if the sample doesn’t meet your specs.

  • Q: Do you provide certifications (RoHS/REACH)?
    A: All samples include compliance documentation upon request.

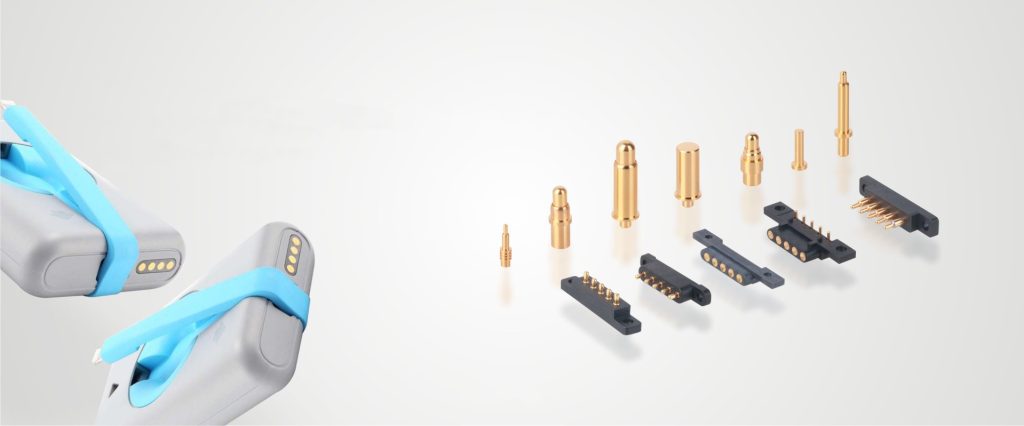

custom-pogo-pin-design-for-power-bank

How to Choose the Right Pogo Pin Connector for Your Product

20Feb
by pogopin
0

Selecting the right pogo pin connector for your product is crucial to ensuring optimal performance and reliability. With so many options available, it can be challenging to determine which one best suits your needs. Here are the key factors to consider when choosing a pogo pin connector:

  1. Pin Count
    The number of pins required depends on your application. For simple charging, two pins may suffice, while data transfer or additional functionalities may require more pins.

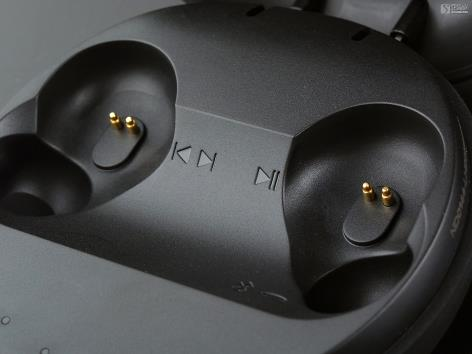

2pin connectors for tws earphone
4 pin connectors for smartwatch
5 pin connector for tablet
2-pin connectors for TWS Earphone
4-pin connectors for Smartwatch
5-pin connectors for tablet

2. Current Rating
Ensure the pogo pins can handle the current required by your device. High-power devices like drones or portable speakers may need connectors rated for 5A or more, while low-power devices like wireless earbuds may only require 1-2A.

DJI drone concept FPV

3. Environmental Requirements
If your product will be exposed to water, dust, or extreme temperatures, choose pogo pins with appropriate IP ratings (e.g., IP54, IP67) and plating materials. Gold plating, for instance, offers excellent corrosion resistance, making it ideal for harsh environments. （Contact our sales representatives for gold plating suggestions.)

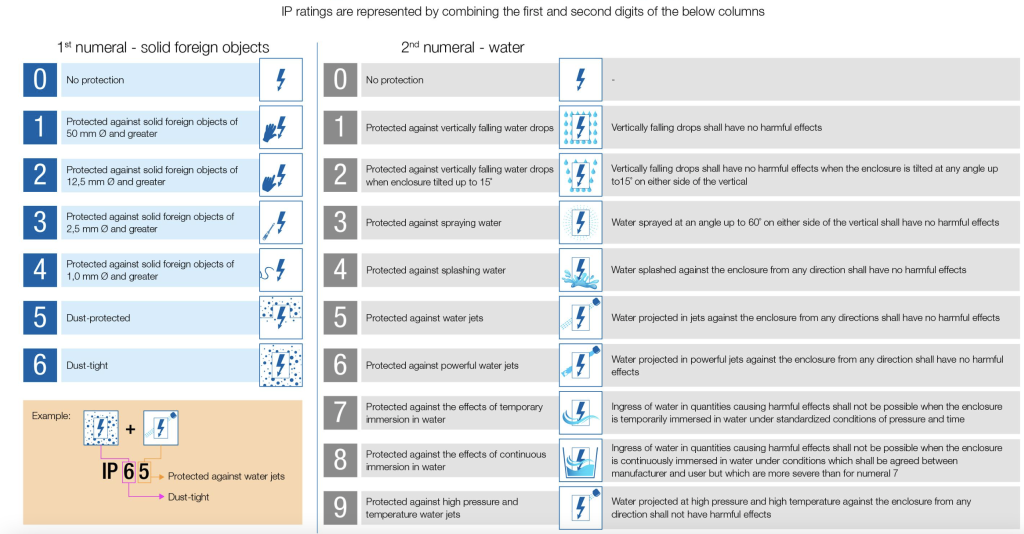

IP ratings

4. Size and Pitch

The size and pitch (distance between pins) of the connector should match your product’s design constraints. Compact devices like wearables may require smaller pitches, while larger devices like industrial equipment can accommodate standard sizes.

5. Mating Cycle Life

Consider how often the connector will be used. For devices that require frequent charging, such as fitness trackers or handheld scanners, opt for pogo pins with a high mating cycle life (e.g., 10,000+ cycles).

6. Customization Options

Many manufacturers offer customizable pogo pins to meet specific requirements. Whether you need unique shapes, lengths, or additional features like magnetic alignment, customization ensures the connector perfectly fits your product. （Please get in touch with our sales representatives for quotation!)

By carefully evaluating these factors, you can select the perfect pogo pin connector for your product. If you’re unsure, consult our sales representatives who can guide you through the selection process and provide samples for testing.

sales representative
sales representative

ZEKO @ CES2025

16Jan
by pogopin
0

We're Attending CES 2025!

Join us at Booth #41948 to explore the future of electro-mechanical components.

2025 ces expo

Las Vegas, NV – [Jan.7-10] – Zhenghe Precision Electronics is excited to announce our participation in CES 2025, the world’s most influential technology event.

From January 7-10, we invite you to visit us at Booth #41948 in the Las Vegas Convention Center to discover our latest innovations in electro-mechanical components, with a special focus on our advanced pogo pin and high cuurent connection solutions for the automotive sector.

As a leading manufacturer of precision components, we are at the forefront of developing high-quality, reliable connectors that meet the rigorous demands of modern technology. Our exhibit at CES 2025 will showcase how our products contribute to the development of safer, more efficient, and more connected vehicles.

Highlights at our booth will include:

  • Next-generation Pogo Pins: See firsthand our latest pogo pin connectors, engineered for superior durability and signal integrity in critical automotive applications.

  • Robust Hight Current Connectors: Discover our high-performance Hight Current Connectors solutions, designed to provide strong, reliable through-hole connections for a wide range of electronic systems.

  • Custom Solutions: Learn how we partner with clients to develop custom-designed components that solve complex engineering challenges.

2025 CES WITH CUSTOMER
2025 CES WITH CUSTOMERS

Event Details

  • Event: CES 2025

  • Dates: January 7-10, 2025

  • Location: Las Vegas Convention Center, SOUTH HALL #3, Las Vegas, NV

  • Booth: #41948

.

Global Sources Consumer Electronics 2024

26Oct
by pogopin
0

We Attended Global Sources Hong Kong 2024!

We showcased our latest electro-mechanical component solutions at Booth 11P10.

Hong Kong – [2024.10.11-2024.10.14] – Zhenghe Precision Electronics was pleased to announce our participation in the Global Sources Hong Kong Electronics Show 2024, one of Asia’s most important electronics sourcing events. We invited visitors to join us at AsiaWorld-Expo from October 11-14 at Booth 11P10.

We showcased our newest product lines, including advanced pogo pin and high current connectors, designed to meet the growing demands of the electronics industry. Our team was available to demonstrate how our precision components could enhance a project’s performance and reliability.

Highlights at our booth included:

  • Innovative Connector Solutions: We displayed our full range of pogo pins, including high-current, waterproof, and custom-designed options.
  • Reliable high current connectors: We shared information about our robust high current connectors, essential for strong and stable high current connections.
  • Expert Consultation: Our engineers were on-site to discuss specific needs and provide insights on how our components could be integrated into new designs.

We were looking forward to connecting with buyers, engineers, and partners from around the world. The event was a great opportunity to demonstrate our commitment to quality and innovation in action.

About Zhenghe Precision Electronics Zhenghe Precision Electronics is a leading manufacturer of high-quality electro-mechanical components. With a focus on precision manufacturing and advanced technology, we provide durable and reliable solutions for a wide range of applications, from consumer electronics to industrial equipment.

Event Details

  • Event: Global Sources Hong Kong Electronics Show 2024
  • Dates: October 11-14, 2024
  • Location: AsiaWorld-Expo, Hong Kong
  • Booth: 11P10

NEPCON Vietnam 2024:Find Your Electronic Material Partners at NEPCON Vietnam

21Sep
by pogopin
0

Electronic Material Partners

With Vietnam rapidly becoming a major manufacturing center as production shifts from China, the demand for reliable local electronic material suppliers is greater than ever.

NEPCON Vietnam, the country’s premier exhibition for electronics manufacturing equipment and microelectronics, is the perfect place for large factories to find these crucial partners.

ZHENGHE (ZEKO) POGO PIN will be located at booth Q04. The event runs from October 10th-12th, 2024, 9 am-5 pm daily, at the Hanoi International Exhibition Center (I.C.E. Hanoi).

ZEKO specializes in high-quality POGO PIN CONNECTORS and is eager to demonstrate how we can support your manufacturing operations in Vietnam. We warmly invite all our clients and friends to visit our booth and establish valuable connections to be your Electronic Material Partners.

We look forward to connecting with you at NEPCON Vietnam!

nepcon vietnam2024
nepcon vietnam2024

Three Basic Knowledge of Pogo Pin

28Jun
by pogopin
0

This article will look at：

  1. The Basic Design Concept of Pogo Pin

  2. The Basic Plunger design of Pogo Pin

  3. The Basic Working height of Pogo Pin



A Guide to Pogo Pin Fundamentals

Pogo pins, or spring-loaded connectors, are essential components in countless electronic devices, providing reliable connections in compact spaces. Understanding their fundamental design principles is key to selecting the right pin for any application. This guide covers the three basic areas of pogo pin knowledge: the core design concept, common plunger designs, and the optimal working height.



The Basic Design Concept of Pogo Pin（Spring-loaded Connector）：

The primary function of a pogo pin is to create a reliable electrical connection. To do this effectively, the design leverages a fundamental principle of electricity: current follows the path of least resistance.

In an ideal pogo pin connection, the current flows from the plunger (the moving pin) directly to the inner wall of the barrel (the outer tube) and then to the printed circuit board (PCB). This path bypasses the spring, which typically has higher resistance. This direct plunger-to-barrel contact ensures the lowest and most stable resistance, leading to a more reliable and efficient electrical connection.



The Basic design concept of Pogo Pin



The Basic Plunger Design of Pogo Pin（Spring-loaded connector）：

Bias Tail

Bias Tail

The bias tail design is the most common and cost-effective option. The plunger has an angled, or “biased,” tail that maintains constant contact with the barrel’s inner wall. This simple and effective design provides a great balance of performance and price.

  • Advantage: Low and stable contact resistance.

  • Best for: General-purpose applications where reliability and cost are key.



Back Drill

Back Drill

The back drill design is engineered for space-constrained applications like wireless earbuds, smartphones, and small IoT devices. A cavity is drilled into the back of the plunger, allowing for a longer spring to be used without increasing the overall length of the pin. This enables greater elasticity and travel in a very small footprint.

  • Advantage: Maximizes spring length in a minimal connector size.

  • Best for: High-density and miniature electronic devices.

Cone Design



Cone Design

For applications demanding high precision and minimal wobble, the cone design is an excellent choice. The plunger features a tapered tail that nests perfectly within the spring. This self-centering action reduces the potential for the plunger to skew or tilt during compression.

  • Advantages: Easy turning, minimal skewness and low cost

  • Best for: Connectors requiring high concentricity and precise alignment.

Ball Design



Ball Design

The ball design offers the most stable and robust connection, making it the top choice for high-current applications and challenging environments. It incorporates a separate ball between the plunger and spring, ensuring a multi-point, stable contact interface.

  • Advantages: Extremely stable resistance and suitability for high-current transfer.

  • Best for: Heavy-duty machinery, charging ports, and medical equipment.



The Importance of Pogo Pin（spring-loaded connector）Working Height：



To ensure a pogo pin’s longevity and performance, it’s crucial to use it at its recommended working height.



As a general rule, the optimal working height involves compressing the pin to approximately 2/3 of its total travel distance (stroke). For example, if a pin has a total travel of 1.5mm, its ideal working height would be at 1.0mm of compression.

  • Why is this important? Compressing the pin too little results in insufficient spring force, which can lead to unstable contact resistance. Compressing it too much (or “bottoming out”) puts excessive stress on the spring, drastically reducing its operational lifespan.

  • Best Practices for Optimal Performance:

    • Always operate the pogo pin within the recommended working height specified in its technical drawing.

    • Ensure the contact surface (like a battery plate or golden finger) is clean and free of dirt, oil, or oxidation to maintain a low-resistance connection.

Using a pogo pin correctly at its specified working height significantly boosts the durability and reliability of the entire connector system.

Pogo Pin application – Smart Watch charging and Cable Connector

15Jun
by pogopin
0

Pogo Pin application – Smart Watch charging and Cable Connector

smart watch charging solution

Pogo Pin application

Here are the strengths of our smart watch charging and cable connector solution for you.

  1. Fast and safe charging
  2. User friendly
  3. Magnetic charger
  4. Waterproof function



Application of pogopin charging contacts on Smart watch

  1. The smallest size is needed to attain powerful capabilities. The pogopin charging thimble contact utilized on the smart watch demands an especially modest volume and must withstand a large present.
  2. Waterproof and Anti-oxidation and rust: Many people do sports. Human perspiration is corrosive. At this moment, the charging process of smart watch has to be water-resisted to ensure the pogopin charging contacts aren’t Corrosion by individual perspiration won’t influence the usage of smart watch.

-High Durability

Excellent durability cycle to ZHENGHE design.

-Easy Assembly

Easy to place the device onto the charger.

-More convenience

Pogo Pin connectors are more convenient than other charging methods. We offer the best user experience.

For more information, please contact us.

7 Types of Pogo Pin You Want to Know

06Jun
by pogopin
0

Spring-loaded connectors also called Pogo pins are becoming more and more popular, because well-known companies such as BOSE and MICROSOFT have used them in their consumer products.

flat type pogo pin
Flat type

High stability, flat bottom of pin tube is easy to solder with PCB board.

plug-in pogo pin
Plug-in type

Locating pin is installed on the tail of pin axie, in order to avoid the skewing and ensure the locating function when soldering with PCB board.

side stick
Side stick

Lateral design makes the product much thinner, design of locating pin is beneficial to the product location of product.

bending type pogo pin
Bending type(right-angle type)

Bend of tail of pin axie can provide more choice for designer in the aspect of space utilization.

double-ended pogo pin
Double-ended pin

Double-headed design, so that engineers in the board-to-board two-way connection with more space elasticity.

waterproof
Water proof Pogo pin connector

waterproof connection solution, providing customized design to achieve waterproof, dustproof, and shockproof requirements, making the product suitable for harsher environments, and can be appiled in severe environment and provide the safe reliable experience for customer.

magnetic pogo pin
The magnetic Pogo pin connector

It can achieve good high-frequency signal transmission, can provide current charging above 3A, and also provide high-speed data transmission, which can achieve functions such as fast charging.
