10PIN SMT H3.5 PITCH 2.54 ZH-F6755-2X5P254CR

Description

0PIN SMT H3.5 PITCH 2.54 ZH-F6755-2X5P254CR | Reliable High-Density Connector

The 10PIN SMT H3.5 PITCH 2.54 ZH-F6755-2X5P254CR is designed for compact electronic applications.

It is an alternative for 813-22-010-30-000101, featuring 10u” gold plating.

The plunger base is made from lead-free brass, ensuring durability and reliable electrical performance.

Plunger plating includes nickel 50-120u” with 10u” gold for stable contact and corrosion resistance.

The barrel base is also lead-free brass with matching plating for long-term reliability.

The spring is made from SUS, providing consistent spring force of 85 g ± 20%.

Housing is PA, ensuring insulation and mechanical stability in small electronic devices.

The connector supports a rated current of 1A, with a maximum of 2A for higher loads.

Rated voltage is 12V, suitable for most consumer electronics and PCB layouts.

Contact resistance is only 30 mΩ, guaranteeing reliable signal transmission.

The connector supports up to 10,000 life cycles, ensuring long-term durability.

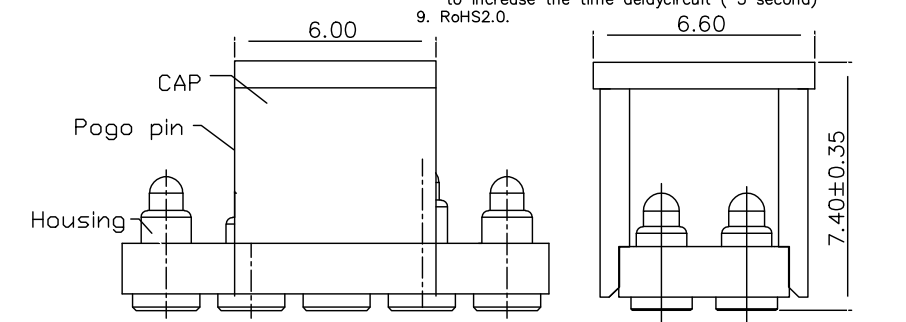

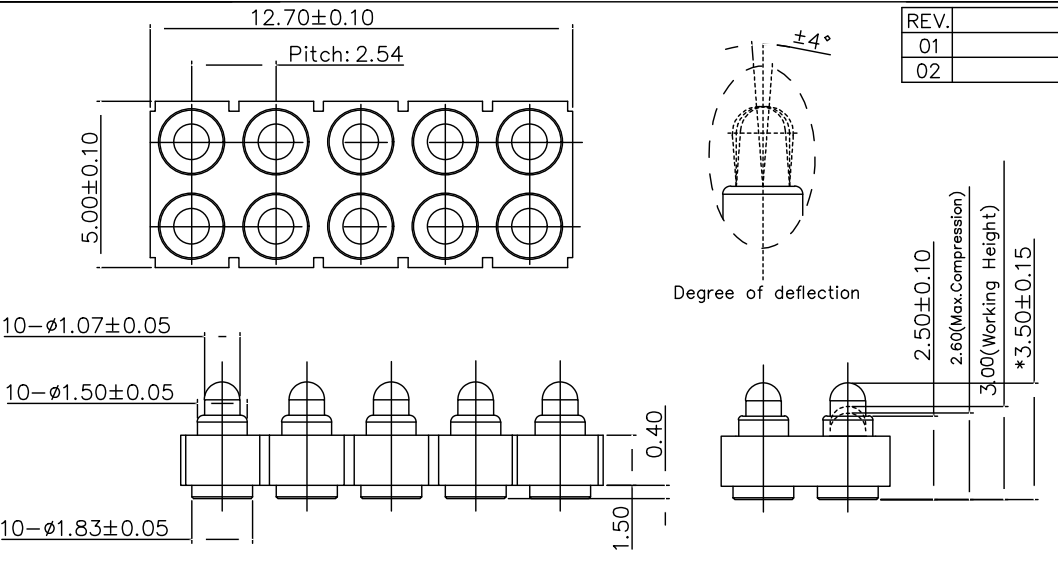

Its small 3.5mm height makes it ideal for high-density SMT applications.

The 10PIN SMT H3.5 PITCH 2.54 ZH-F6755-2X5P254CR ensures precise alignment for automated assembly.

It is compatible with 4-pin and 8-pin variants for different device configurations.

Engineers can rely on its consistent plunger travel and spring force for stable contacts.

Gold plating ensures low contact resistance and reliable signal transfer across all pins.

The connector integrates easily into compact PCB layouts, saving space efficiently.

Its robust design prevents movement during soldering, enhancing manufacturing reliability.

The combination of nickel and gold plating resists corrosion in high-use environments.

It is suitable for TWS headsets, smart devices, tablets, and other compact electronics.

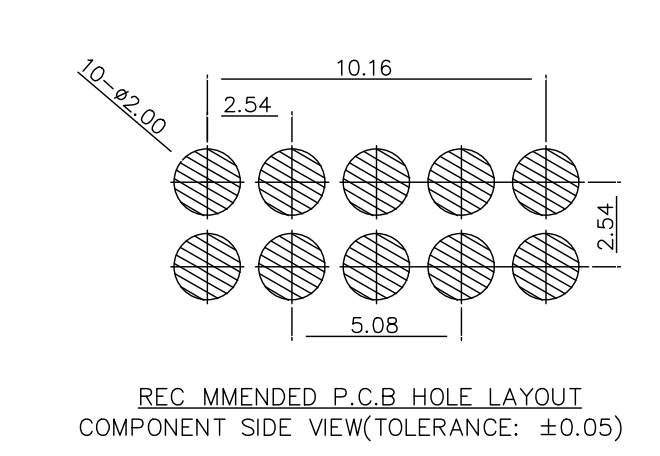

Engineers benefit from its precise 2.54mm pitch for tight PCB layouts.

The connector’s flat housing and sturdy spring allow efficient automated assembly processes.

High-quality materials ensure repeated insertion and removal without contact degradation.

Its design balances compact size, durability, and high performance in modern electronics.

This connector offers versatility and reliability for both prototype and mass production.

With long life, low resistance, and high-density compatibility, it ensures device stability.

The 10PIN SMT H3.5 PITCH 2.54 ZH-F6755-2X5P254CR is a premium solution for high-density electronic connections.

4 pin, 8 pin also available.
