8PIN-SMT-POGO-PIN-H3.5-PITCH-2.54-ZH-F6756-2X4P254CR

Description

8PIN-SMT-POGO-PIN-H3.5-PITCH-2.54-ZH-F6756-2X4P254CR | Precision Connector for Electronics

It is a high-quality connector for advanced electronic devices.

It is an ideal alternative for 813-22-008-30-000101, featuring 10u” gold plating for durability.

The plunger base is made from lead-free brass, providing excellent mechanical stability.

Nickel and gold plating on the plunger ensures low contact resistance and corrosion resistance.

The barrel is constructed from lead-free brass, also plated with nickel and gold for longevity.

SUS spring base guarantees consistent spring force and reliable electrical contact over time.

The housing is made of durable PA material, offering insulation and structural support.

Rated current is 1A, with a maximum of 2A, suitable for various low-power electronic applications.

Rated voltage reaches 12V, meeting industry standards for consumer electronics and prototypes.

Contact resistance is kept low at 30 mΩ, ensuring stable and efficient signal transmission.

Spring force is precisely calibrated at 85 g ± 20%, allowing smooth compression and recovery.

The connector supports a life cycle of up to 10,000 insertions, ensuring long-term usability.

Its compact SMT design simplifies automated assembly and reduces PCB space requirements.

Vertical pin configuration allows easy soldering and precise alignment on the PCB.

Engineers can use this connector for TWS Bluetooth headsets, smart devices, and other electronics.

The robust spring mechanism maintains reliable contact, even under repeated mating cycles.

Gold-plated surfaces improve corrosion resistance, reducing maintenance and replacement costs.

The compact form factor supports dense pin arrangements without overcrowding the circuit board.

Its precision design helps reduce assembly errors and increases production efficiency.

Engineers benefit from a connector that balances durability, flexibility, and performance.

It is suitable for both prototyping and mass production.

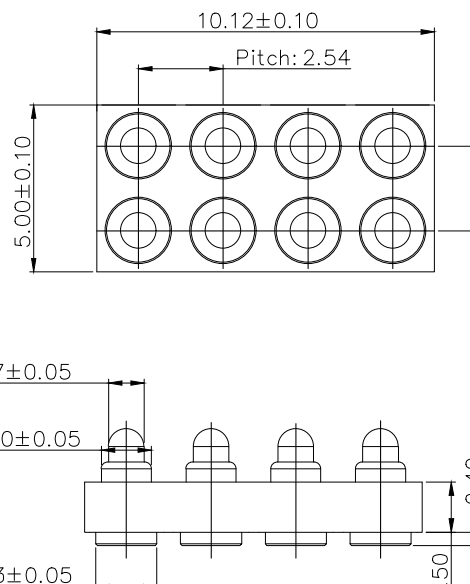

Automated SMT placement is simplified by its standardized pitch of 2.54mm.

Reliable plunger and spring construction ensures consistent electrical performance in demanding applications.

This connector is ideal for devices requiring frequent mating cycles and high durability.

Engineers can trust it for both consumer and industrial electronics projects.

For complete specifications, alternative pin configurations, or bulk orders, contact our sales team today!

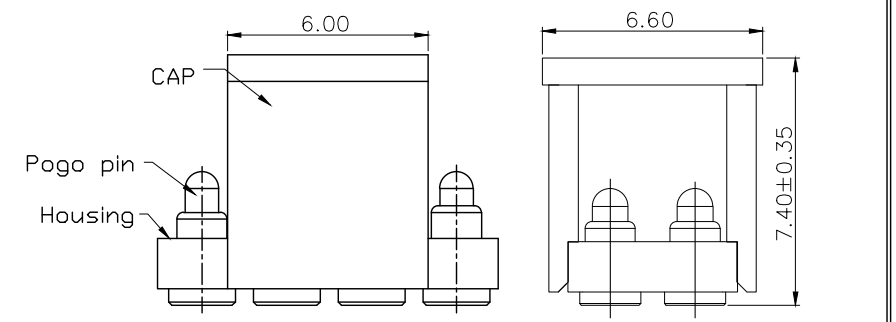

8PIN-SMT-POGO-PIN-H3.5-PITCH-2.54-ZH-F6756-2X4P254CR

Alternative for 813-22-008-30-000101 , 10u” gold plating;
