SMT POGO PIN 3.5H | Reliable High-Precision Connector
The SMT POGO PIN 3.5H is ideal for compact electronic applications.
It belongs to the standard connectors category with part number ZH-F6825.

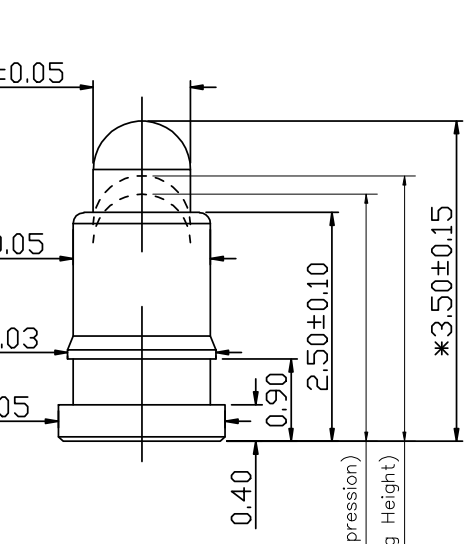

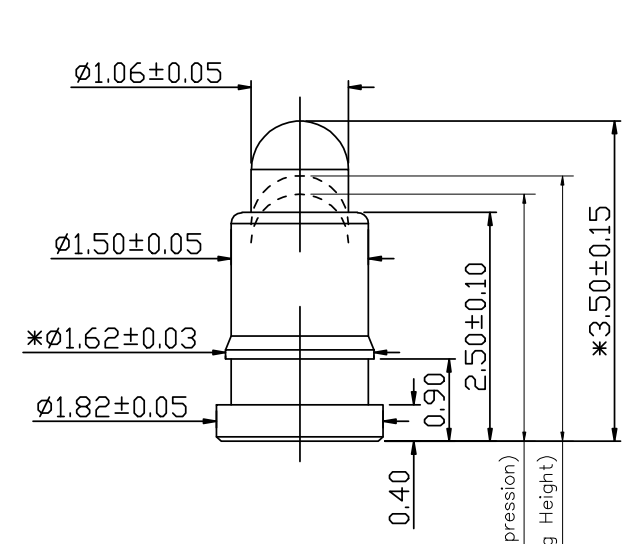

The pin length is 3.5mm, offering precise contact with minimal variation.
Working height is 2.7mm, suitable for high-density SMT assemblies.
Pin direction is vertical, ensuring accurate alignment on PCB boards.
Pin tail design is flat, compatible with automated SMT production processes.
This connector comes as a single-pin unit but supports multi-pin variants.
Rated current is 1A, providing reliable power transfer in small devices.
Contact resistance is only 30 mΩ, ensuring low-loss signal transmission.
The SMT POGO PIN 3.5H integrates easily into automated assembly lines.
Its compact design saves space for tight PCB layouts in consumer electronics.
Multi-pin configurations are available, including 8-pin and 10-pin options.
The pin’s robust spring ensures long-lasting and consistent electrical performance.
Durable materials prevent wear even after repeated insertion cycles.
Engineers can rely on its consistent plunger travel for stable contacts.
Flat-tail design facilitates soldering and prevents misalignment during assembly.
The connector is suitable for TWS Bluetooth headsets, smart devices, and tablets.
Its high-density compatibility allows for efficient space utilization in PCBs.
Reliable contact resistance ensures accurate data and power transfer every cycle.
The SMT POGO PIN 3.5H is compatible with prototype and mass production builds.
Small size and sturdy design enhance its performance in compact electronic devices.
It supports precise placement and reduces assembly errors in automated lines.
The connector’s flat tail and vertical pin direction simplify soldering processes.
Engineers benefit from its long life, compact form, and easy integration.
The connector offers a balance of durability, performance, and efficient space usage.
Multi-pin options allow flexible designs without compromising electrical stability.
It provides high reliability in consumer electronics, medical devices, and wearables.
The SMT POGO PIN 3.5H delivers consistent performance for modern electronic applications.
SMT POGO PIN 3.5H
| Category | Standard Connectors |
| P/N | ZH-F6825 |
| Length | 3.5 |
| Working Height | 2.7 |
| Pin Direction | Vertical |
| Pin Tail | FLAT |
| Pin Amount | 1 |
| Pitch | / |
| Rated Current | 1 |
| Contact Resistance | 30 mΩ |
