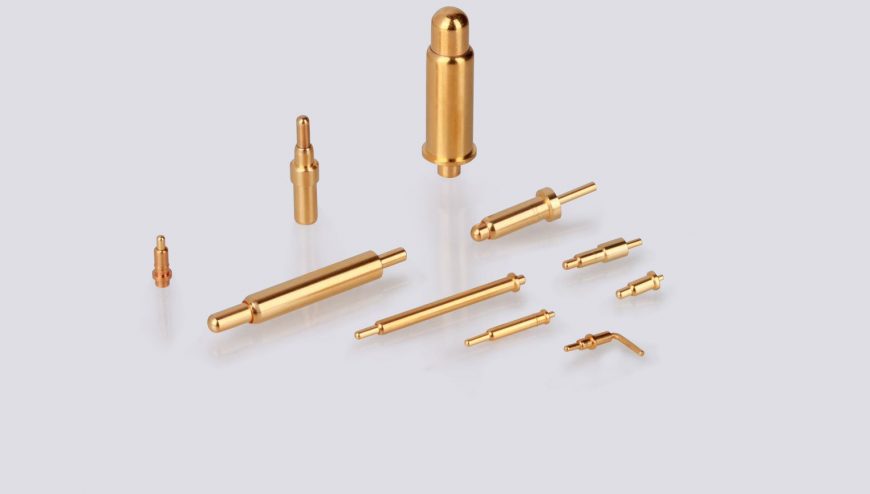

Product structure

pogo pin structure design

Precautions for use

• The amount of compression during work is generally 2/3 of the total stroke; too little press-in and insufficient positive force will result in unstable impedance, and too much press-in will damage the nozzle and cause pin stuck
• In the process of assembling plastic, pay attention to avoiding the force of the nozzle, so as not to cause the deformation of the valve and shrink the needle, pin stuck
• The battery contacts or FPC golden fingers that are connected to the Pogo Pin must not be dirty, oxidized, etc.

• Please use within the drawing specifications
